Creating Surface Finish Symbols for Casting – Pro/Engineer

Standard Surface Finish Symbols

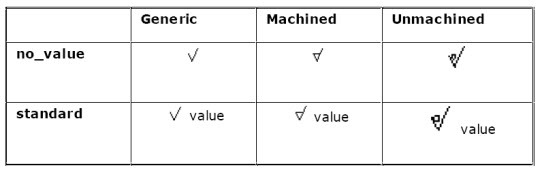

Symbols available in the /symbols/surffins directory, or you can create and save your own surface finish symbols. The standard symbols are shown in the following table.

In this article we are trying to insert a Unmachined symbol on a casting surface. Following screenshots shows the method of creation of surface finish symbol for unmachined surface.

Step 1:- Insert Surface Finish

Insert Surface Finish

Step 2:- Retrieve Unmachined

Retrieve Unmachined Symbol

Step 3:- Open standard2.sym

Step 4:- Select a placement method

Surface Finish Placement Method Selection

Step 5:- Select a placement entity and give the surface finish value

Unmachined Surface Symbol
