Creating Intersection Witness Lines on Pro/Engineer (Creo) Drawings

Here is how you can enable intersection witness lines on round and chamfers on Pro/Engineer (Creo) drawings . Select the dimension where you want to add intersection witness line. And then long right click to bring the dimension property dialog box. Go to ‘Display’ tab and enable check box with title ‘Enable intersection witness lines’

Round-Chamfer-Corner-Extension-Lines-Dimension-Intersection-Witness-Lines-Pro-Engineer-Creo
Dimension with intersection witness lines on round & chamfer corners - Dimension extension lines - Pro/Engineer (Creo)

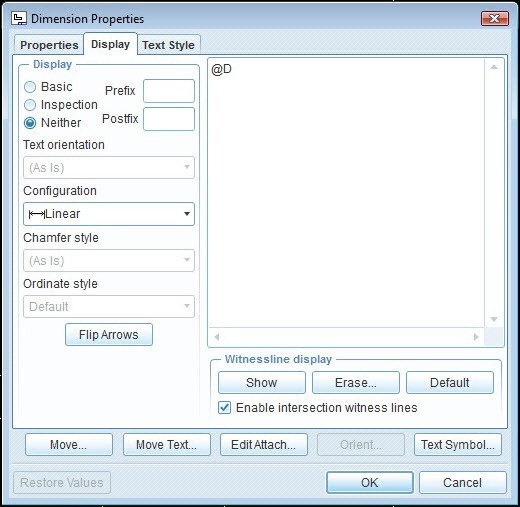

Round-Chamfer-Corner-Extension-Lines-Enable-Intersection-Witness-Lines-Pro-Engineer-Creo-Dimension-Property-Window
Dimension property window for enabling intersection witness lines on round & chamfer corners - Pro/Engineer (Creo)
